Why a Riser Block Changes Everything About Your 14 Inch Bandsaw
Adding a riser block to your 14 inch bandsaw is one of the smartest upgrades you can make if you regularly work with thick stock or want to get serious about resawing lumber. This relatively simple modification extends the frame height, effectively doubling your cutting clearance from around 6 inches to approximately 12 inches. That extra capacity transforms a mid-sized bandsaw into a machine capable of slicing through large turning blanks, resawing boards for bookmatched panels, and handling stock that previously required a trip to a commercial shop. However, simply bolting on a riser block without addressing the blade guide system often leaves significant performance improvements untapped, which is why understanding the full upgrade picture matters before you start the installation.
Key Benefits of Installing a Riser Block Kit
- Doubled resaw capacity allows you to work with stock up to 12 inches tall instead of the standard 6 inch limit
- Better utilization of wider blades up to 1 inch or more for improved straight line cutting during resawing operations
- Increased versatility for cutting large bowl blanks, thick slabs, and oversized project components
- Greater blade tension capability when paired with upgraded guides reduces blade wander and drift
- Long term cost savings by eliminating the need to upgrade to an entirely larger and more expensive bandsaw
Understanding Why Blade Guides Matter After Adding Height
When you increase the distance between your upper and lower blade guides by installing a riser block, you also increase the unsupported length of the blade during cutting. This longer span makes the blade more prone to deflection, twist, and vibration, especially under the heavy loads that come with resawing thick hardwoods. Factory blade guide assemblies on most 14 inch saws were designed for the original 6 inch capacity and often struggle to provide adequate support once you add that extra frame height. Upgrading to a precision all bearing guide system with sealed ball bearings on each side of the blade plus a thrust bearing behind it addresses these issues directly. The result is noticeably cleaner cuts, quieter operation during use, and significantly reduced blade wear over time.
What Makes All Bearing Guide Systems Superior to Factory Guides
Most factory bandsaw guides rely on simple blocks made from steel, ceramic, or composite materials that create friction against the blade. While these work acceptably for lighter duty cuts, they generate heat, wear out relatively quickly, and require frequent adjustment to maintain proper clearance. All bearing guide systems replace these friction blocks with sealed ball bearings that roll against the blade instead of rubbing. This design dramatically reduces heat buildup, extends blade life, and provides more consistent support throughout long resawing sessions. The micro adjustable design found in quality upgrade kits allows for precise positioning without tools, making blade changes and setup far faster than working with traditional guide blocks.
Riser Block Guide Kit Compatibility by Brand and Model
| Brand | Model Type | Upper Post Style | Blade Width Range | Special Notes |
| Delta | 14 Inch Standard | Round | 3/16 to 1 Inch | Drop in compatibility with riser blocks |
| Delta | 14 Inch Older Models | Hexagonal | 3/16 to 1 Inch | Requires hex post specific kit |
| Jet | 14 Inch | Hexagonal | 1/8 to 1 Inch | Tool less micro adjustable guides |
| Jet | 18 Inch (JWBS-18X, JWBS-18QT) | Round | Up to 1 1/4 Inch | Reduced vibration design |
| Ridgid | 14 Inch | Round | 3/16 to 1 Inch | Compatible with original and aftermarket guide systems |
| Grizzly | Various 14 Inch Models | Varies by model | 3/16 to 1 Inch | Model specific kits available |
Delta 14 Inch Bandsaw Riser Block Upgrade Options

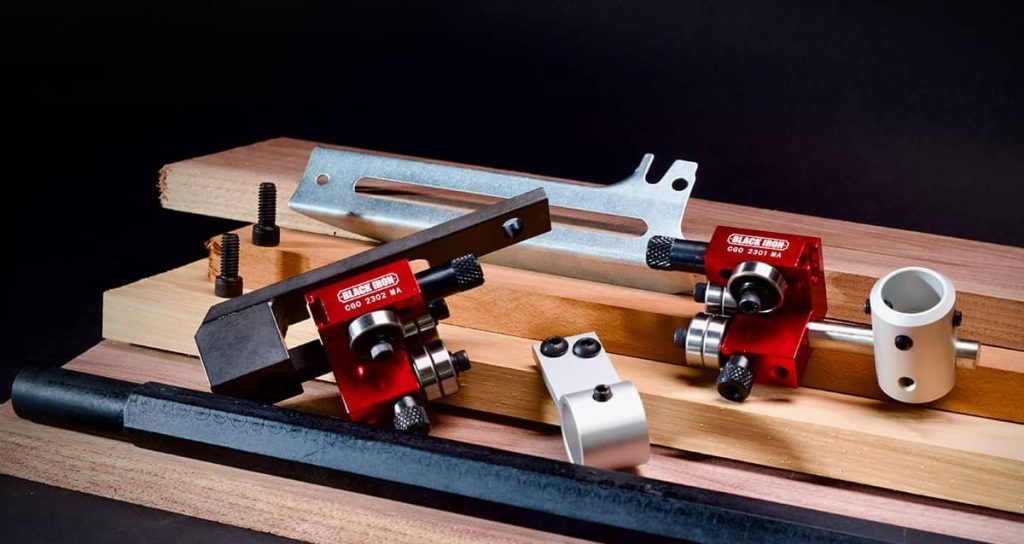

The Delta 14 inch bandsaw remains one of the most popular saws for home workshops, and its straightforward design makes it an excellent candidate for riser block upgrades. The standard Delta 14 inch riser guide upgrade kit is engineered specifically for saws already fitted with a riser block, accommodating blade widths from 3/16 inch to 1 inch with easy drop in compatibility. If you own an older Delta model featuring a hexagonal upper guide post rather than the more common round post, you will need a dedicated hex post kit designed for that specific configuration. These older Deltas are still excellent machines, and the right guide upgrade breathes new capability into them. Matching the correct kit to your specific Delta model ensures proper fit and eliminates the guesswork that comes with trying to adapt generic aftermarket parts.
Installation Tips for Delta Riser Block Guide Kits
- Verify your upper guide post shape before ordering since Delta used both round and hexagonal posts across different production years
- Remove your existing blade and both upper and lower guide assemblies completely before starting installation
- Clean the guide post thoroughly to remove sawdust buildup and any residue that could affect the new guides
- Install the lower guide assembly first and adjust it to factory specifications before moving to the upper unit
- Set bearing clearance so the blade spins freely without touching the side bearings until cutting pressure is applied
- Position the thrust bearing approximately one thousandth of an inch behind the blade to prevent premature wear
- Test your setup with a practice cut in scrap material before committing to expensive stock
Jet Bandsaw Riser Block Upgrades for 14 and 18 Inch Models
Jet bandsaws have earned a solid reputation among serious woodworkers, and both the 14 inch and 18 inch models respond exceptionally well to guide system upgrades when combined with riser blocks. The Jet 14 inch hex riser block guide kit is built specifically for Jet saws featuring a hexagonal upper guide post with a riser block already installed. This kit features tool less micro adjustable guides that make blade changes remarkably quick and supports blade widths ranging from 1/8 inch to 1 inch. For owners of larger Jet models like the JWBS-18X and JWBS-18QT, the 18 inch upgrade kit handles blade widths up to 1 1/4 inch and delivers noticeably reduced vibration along with improved blade control during demanding cuts. The precision of these kits becomes especially apparent when resawing figured woods where even minor blade deflection can ruin a potentially beautiful board.
ALSO WORTH READING
How to Prepare Your Bandsaw for Moving Without Wrecking It
Moving a bandsaw takes more than just muscle. Without the right preparation, you can damage the blade, throw off the alignment, or even crack delicate components. Check out our guide on How to Prepare Your Bandsaw for Moving Without Wrecking It to learn the key steps for protecting your saw before transport and making sure it arrives ready to get back to work.
Features to Look for in Jet Compatible Guide Kits
- Sealed ball bearings that resist sawdust infiltration and require no lubrication during normal use
- Tool free adjustment mechanisms that allow on the fly fine tuning without reaching for wrenches
- Heavy gauge steel construction that resists flexing under load and maintains alignment over years of use
- Direct bolt on installation with no drilling, welding, or permanent modification to your saw required
- Compatibility with both standard and riser block equipped configurations for maximum flexibility
Ridgid 14 Inch Bandsaw Riser Block Guide Solutions
The Ridgid 14 inch bandsaw offers solid performance at a competitive price point, and adding a riser block significantly expands what this saw can accomplish. The Ridgid 14 inch guide kit maintains full compatibility with original factory guides while also working seamlessly with various aftermarket guide systems. Supporting blade sizes from 3/16 inch to 1 inch, this kit uses sealed ball bearing roller guides that handle the increased demands of resawing with ease. What makes this upgrade particularly worthwhile is how it transforms the feel of the saw during operation. Cuts that previously required slow, careful feeding can now be made with more confidence and speed because the blade stays exactly where it belongs. For Ridgid owners who want to maximize their investment without purchasing an entirely new machine, this upgrade path makes practical and financial sense.
Grizzly Bandsaw Riser Block Upgrade Considerations
- Grizzly produces multiple 14 inch bandsaw variants, so identifying your exact model number is essential before selecting a guide kit
- Model specific kits ensure proper fit and eliminate the compatibility issues common with one size fits all alternatives
- The fit first design philosophy behind quality __Grizzly bandsaw guide upgrades__ means less installation frustration and better results
- Many Grizzly owners report that upgraded guides reduce the frequency of blade tracking adjustments needed during extended use
- Pairing a riser block with new guides on a Grizzly saw creates a capable resawing setup at a fraction of the cost of a dedicated resaw bandsaw
Making the Most of Your Riser Block Investment
Installing a riser block on your Delta, Ridgid, Jet, or Grizzly bandsaw opens up possibilities that extend well beyond simple increased cutting height. With the ability to use wider blades and the improved support that comes from upgraded bearing guides, you can tackle resawing projects that produce veneer, bookmatched panels, and thick slabs with results that rival far more expensive machinery. The combination of added capacity and precision guide systems means your bandsaw blade tracking stays consistent throughout long cuts, reducing waste and improving the quality of your finished work. Taking the time to properly match your riser block and guide kit to your specific saw model pays dividends every time you fire up the machine. Whether you are preparing lumber for furniture projects, cutting blanks for the lathe, or simply want more versatility in your shop, a well executed riser block upgrade is an investment that keeps delivering value for years to come.
