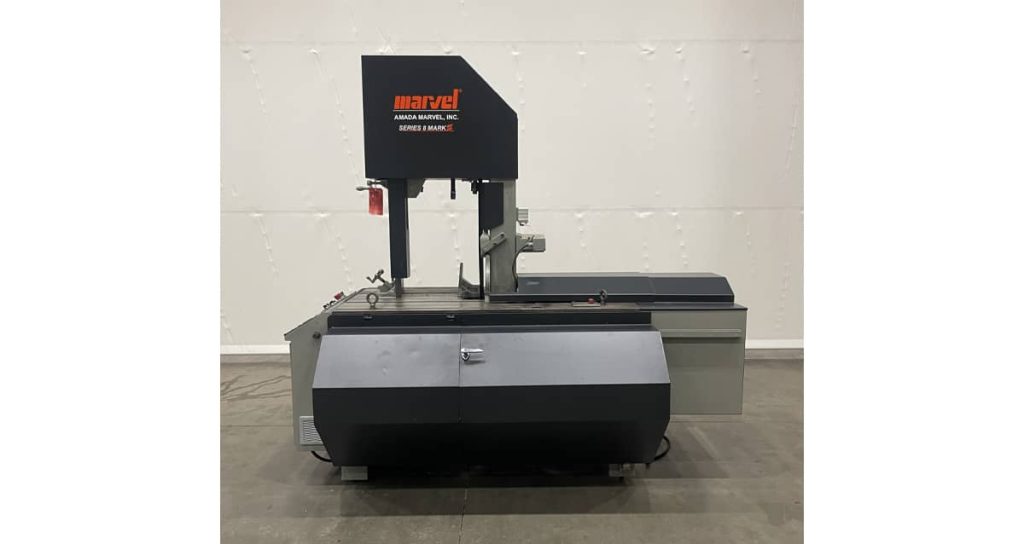

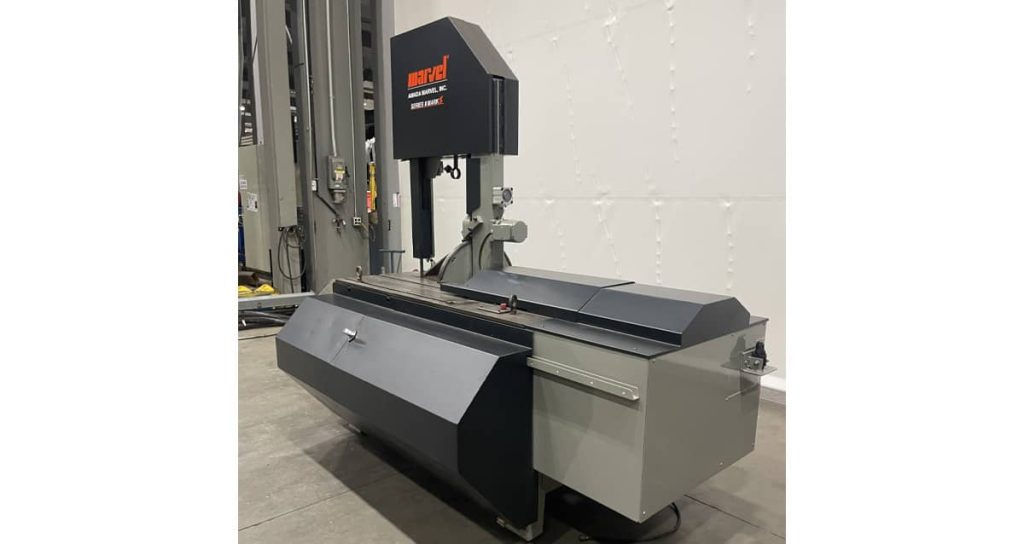

An industrial Marvel Series 8 Mark III vertical tilt-frame bandsaw in a production setting, featuring precision tilt control, a heavy-duty work table, and advanced operator features for versatile metal cutting applications.
Understanding the Marvel Series 8 Mark III
The Marvel Series 8 Mark III is built for versatility, precision, and efficiency in demanding cutting environments. Designed with a vertical tilt-frame, this machine allows for exceptional miter cutting capabilities without moving the workpiece. Its strong cast-iron wheels, high-capacity table, and variable speed drive system make it suitable for a range of cutting tasks from intricate angles to straight-through cuts. Operators benefit from its ergonomic controls, built-in coolant system, and quick adjustments that minimize downtime.
Key Advantages of the Marvel Series 8 Mark III
Owning or operating the Marvel Series 8 Mark III comes with a variety of performance benefits:
-
Versatile Miter Cutting: Tilt up to 60° right or left without repositioning the material.
-
Quick Change Column: Switch between upright and 3° forward cant for specific applications.
-
Automatic Column Return: Saves time and increases efficiency.
-
Variable Speed Control: Adjust blade speed easily from the operator station.
-
Blade Break/Stall Detection: Automatic shut-off improves safety and prevents damage.
-
Integrated Coolant System: Keeps the blade clean and reduces heat buildup.
Built for Performance and Longevity
The combination of solid carbide guide systems, precision guide blocks, and a power chip brush ensures consistent cutting results and extended blade life. The work table’s large surface area and t-slot configuration provide flexibility for securing different materials. This setup gives operators a reliable platform for both short production runs and continuous use.
Enhanced Operator Control

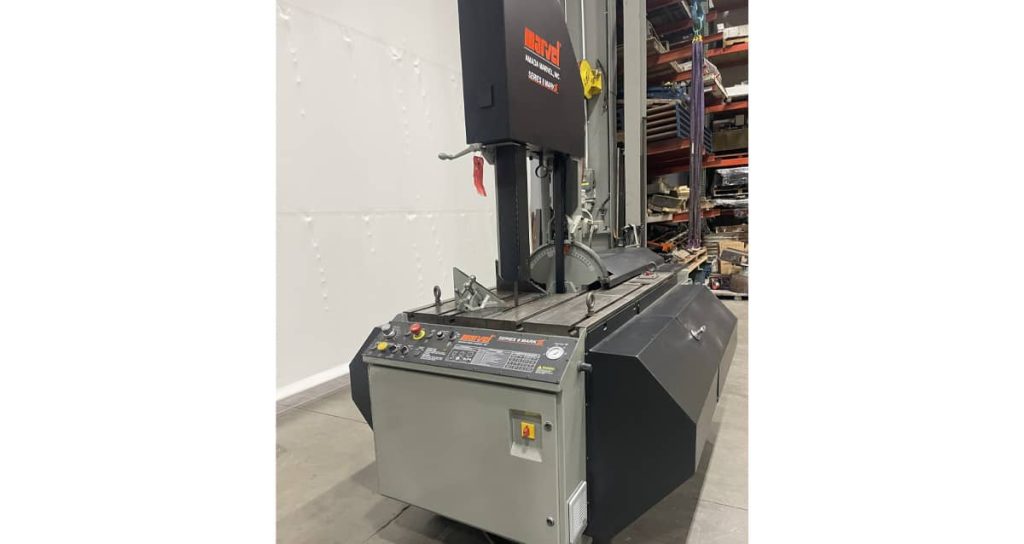

Ease of use is at the forefront of the Series 8 Mark III’s design. The front-mounted speed control and intuitive operator’s panel allow for quick adjustments mid-operation. Magnetic motor starters, overload protection, and low-voltage controls improve both safety and convenience for the user.
Machine Specifications Overview
| Feature | Specification |
|---|---|
| Capacity at 90° | 18″ H x 22″ V |
| Capacity at 45° Rgt | 18″ H x 14.5″ V |
| Capacity at 45° Lft | 18″ H x 13″ V |
| Capacity at 60° Rgt | 18″ H x 9.7″ V |
| Capacity at 60° Lft | 18″ H x 7.3″ V |
| Blade Size | 15′ 4″ x 1.25″ x .042″ |
| Speed Range | 50 – 450 fpm |
| Work Table | 24.25″ x 33″, t-slotted |
| Main Motor | 5 HP, TEFC |
| Coolant Pump | 1/8 HP, TEFC |
| Table Height | 38″ |
Precision Cutting Made Simple
Whether cutting steel, aluminum, or specialty alloys, the Marvel Series 8 Mark III is engineered to maintain accuracy across a wide range of materials. The mitering capability and forward cant feature enable precise, repeatable cuts without the need for complex setups.
Time-Saving Features for Busy Shops
-
Automatic stops to control blade travel and motor shut-off.
-
Quick-action vise for rapid material changes.
-
Adjustable guide system for various blade widths.
-
Flushing hose to remove chips from hard-to-reach areas.
Reliability in Demanding Conditions
With its heavy-duty frame and recirculating linear ball bearing column, the Series 8 Mark III is designed to perform under continuous workloads while maintaining accuracy. Operators can expect consistent results even during extended use.
Safety and Maintenance Support
-
Blade break and stall detection to protect both machine and operator.
-
Factory pre-set blade tension for optimal performance.
-
Integrated coolant system to improve blade longevity and cut quality.
Learn More About Buffalo Bandsaw Guide Upgrades
If you own a vintage Buffalo bandsaw and want to improve its accuracy, safety, and performance, upgrading the guide system can make a big difference. Our article “Upgrading the Guide System on Vintage Buffalo Bandsaws: What to Know“ walks you through the benefits, key considerations, and options available. Whether you use your saw for woodworking or metal cutting, this resource will help you choose the right components for smoother cuts and longer blade life.
The Marvel Series 8 Mark III stands out for its combination of precision, versatility, and user-focused features. For operations that require accurate miter cuts, fast adjustments, and dependable performance, it delivers a well-rounded solution designed to keep production running smoothly.
