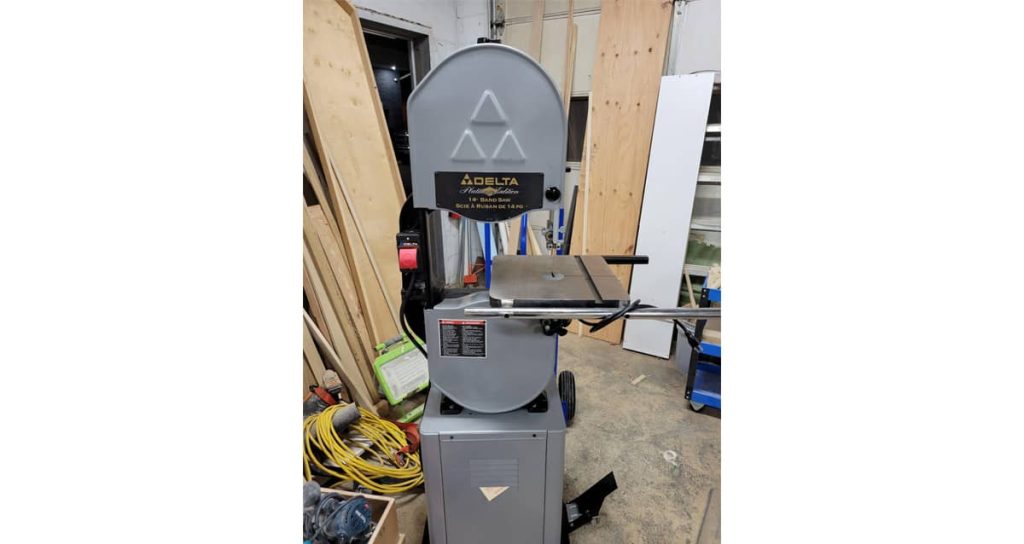

Getting to Know the Delta 254 Bandsaw
The Delta 254 is one of those machines that shops tend to hold onto for years, and for good reason. It was built during a time when Delta prioritized solid construction and straightforward mechanical design, which means it still runs reliably in plenty of woodworking shops today. Whether you picked one up used or inherited it from another woodworker, understanding the basics of the Delta 254 manual, the correct blade size, available parts, and how to handle common problems will keep this saw cutting accurately for a long time. The information here is intended to give you a practical working reference rather than forcing you to hunt through forums or track down outdated documentation.
What the Delta 254 Manual Covers
The original Delta 254 manual provides essential information for setup, operation, and maintenance. Key topics you will find in the manual include:
- Assembly instructions and initial setup procedures
- Blade installation and tensioning guidelines
- Table alignment and adjustment methods
- Motor specifications and electrical requirements
- Recommended feed rates for different materials
- Safety precautions and operational warnings
- Lubrication points and maintenance schedules
- Troubleshooting charts for common issues

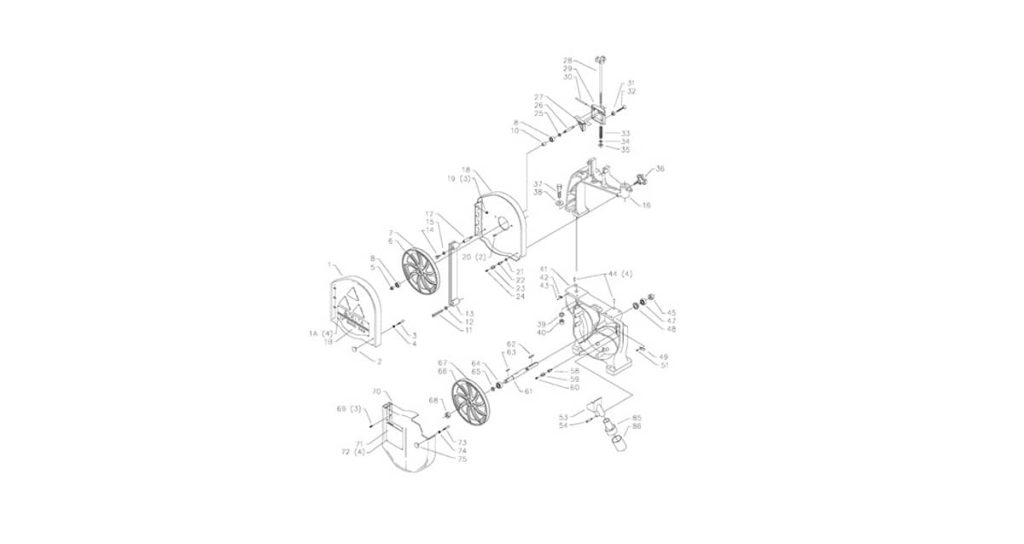

- Parts diagrams with exploded views
- Warranty information and service contacts
Finding a Replacement Delta 254 Manual
If your Delta 254 did not come with the original manual, you still have options. Delta’s older documentation has been archived by several sources, including the Vintage Machinery website, which hosts scanned copies of manuals for discontinued Delta tools. You can also check with Delta directly through their customer service department, though availability for older models varies. Some woodworking forums have members who share PDF copies freely, so a quick search mentioning the Delta 254 manual often turns up results. Having the manual on hand makes blade changes, adjustments, and repairs significantly easier because you can reference the factory specifications rather than guessing.
Correct Blade Size for the Delta 254
The Delta 254 uses a blade length of 93 1/2 inches, which is a common size shared by several benchtop and smaller stationary bandsaws. Blade width options typically range from 1/8 inch up to 1/2 inch, depending on the type of cutting work you need. Narrower blades handle tight curves and scrollwork, while wider blades provide straighter cuts and better beam strength for resawing thicker stock. For general purpose work, a 3/8 inch blade with 4 to 6 teeth per inch offers a good balance between curve capability and straight line performance. Always verify your blade length before ordering, since a blade that is even slightly off will either be too loose to tension properly or will not fit around the wheels at all.

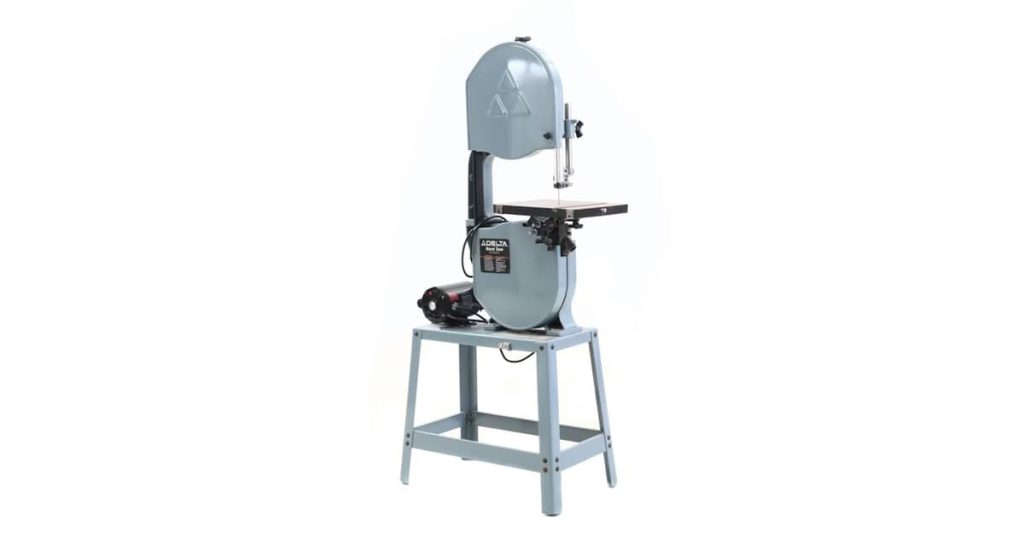

Delta 254 Specifications at a Glance
| Specification | Detail |
| Blade length | 93 1/2 inches |
| Blade width range | 1/8 inch to 1/2 inch |
| Wheel diameter | 14 inches |
| Table size | 14 inches x 14 inches |
| Maximum cutting height | 6 inches |
| Throat depth | 13 1/2 inches |
| Motor | 1/2 HP or 3/4 HP depending on model |
| Blade speed | Approximately 3000 FPM |
| Weight | Around 150 pounds |
Understanding Delta 254 Parts Availability
Sourcing parts for the Delta 254 can require some patience, but it is far from impossible. Many components like tires, guides, bearings, and belts are still available through aftermarket suppliers. The upper and lower wheel tires wear out over time and are among the most frequently replaced parts on this saw. Guide blocks and thrust bearings are also common replacement items, especially if the saw has been used heavily or stored improperly. For more specific parts like castings or proprietary Delta components, searching salvage listings, estate sales, and online marketplaces often produces results. Keeping a parts diagram from the manual handy helps you identify the correct part numbers when ordering.
Access Band Saw Manuals at No Cost
Need help finding the right manual for your band saw? Visit bandsawmanuals.com to browse free manuals for a wide range of bandsaw brands and models. From operating instructions and parts lists to blade information and maintenance guidance, it is a convenient resource for anyone looking to better understand, repair, or maintain their machine.
Common Delta 254 Replacement Parts
When maintaining a Delta 254, these parts tend to need attention most often:
- Upper and lower wheel tires
- Blade guide blocks or bearings
- Thrust bearings for blade support
- Drive belt connecting motor to lower wheel
- Tension spring and adjustment knob
- Table insert and alignment pins
- Blade guard and dust port fittings
- Power switch and electrical cord
- Tracking adjustment knob and hardware
- Fence and miter gauge components
Blade Tracking Problems and How to Fix Them
Blade tracking issues are among the most common complaints with the Delta 254, but they are usually straightforward to correct. If your blade keeps drifting forward or backward on the wheels, the tracking adjustment knob behind the upper wheel housing is your first stop. Small turns make a noticeable difference, so adjust in quarter turn increments while spinning the wheel by hand with the power off. Worn tires can also cause tracking problems because the blade no longer seats properly on the wheel crown. Inspect the tires for cracks, flat spots, or hardening. Replacing worn tires often solves persistent tracking issues that adjustments alone cannot fix.
ALSO WORTH READING
Get More Life From Your Blades
If you want to keep your bandsaw blades cutting smoothly for longer, a simple speed adjustment can make a big difference. Our guide on extending blade life by adjusting bandsaw speed walks you through the process in just one minute. It covers the basics of matching speed to material type, which helps reduce wear and prevents premature dulling. Worth a quick read if you are looking to save time and money on replacements.
Typical Delta 254 Fixes You Can Handle Yourself
Most Delta 254 problems fall within the range of straightforward shop repairs. Issues you can usually address without professional help include:
- Replacing worn wheel tires with fresh rubber
- Adjusting or replacing blade guides and thrust bearings
- Cleaning sawdust buildup from wheel housings and guide assemblies
- Tensioning or replacing a stretched drive belt
- Realigning the table to the blade for square cuts
- Lubricating moving parts and pivot points
- Tightening loose hardware on the frame and table
- Replacing a damaged power cord or switch
- Adjusting blade tension spring for proper pressure
- Cleaning and waxing the table surface for smooth material feed
When to Replace the Blade Guides on Your Delta 254
Blade guides take a lot of abuse on any bandsaw, and the Delta 254 is no exception. If you notice your blade wandering during cuts, producing rougher surfaces than usual, or making more noise than normal during operation, the guides are a likely suspect. Original Delta guide blocks were made of steel or phenolic resin, but many owners upgrade to cool blocks or ceramic guides for better performance and longer life. When replacing guides, check the thrust bearings at the same time since they work together to keep the blade running true. Proper guide adjustment means setting the blocks just behind the blade gullets and leaving a small gap, roughly the thickness of a piece of paper, between the guide and the blade body.
Signs Your Delta 254 Needs Maintenance
Regular inspection helps you catch problems before they affect your work. Watch for these indicators that your Delta 254 needs attention:
- Blade wanders or drifts during straight cuts
- Excessive vibration or unusual noise during operation
- Burn marks on cut surfaces
- Blade slipping or losing tension during use
- Difficulty adjusting blade tracking
- Visible cracks or flat spots on wheel tires
- Rust or corrosion on table or internal components
- Sluggish motor response or overheating
- Loose table or fence that shifts during cuts
- Dust buildup restricting wheel movement
Keeping Your Delta 254 Running for Years to Come
The Delta 254 has proven itself as a reliable shop tool that rewards basic maintenance with consistent performance. By keeping the correct blade size on hand, understanding what parts wear out and where to find replacements, and knowing how to address common fixes yourself, you can keep this bandsaw cutting accurately without spending money on professional service for routine issues. If you are working with an older Delta 254 that has been sitting unused, start with fresh tires, new guides, and a quality blade. From there, regular cleaning, proper tensioning, and occasional lubrication will keep the saw ready whenever you need it. Sawblade.com stocks bandsaw blades in the 93 1/2 inch length used by the Delta 254, making it easy to find the right blade for your next project.
